28 Dec 2025

Haiku's filesystem attributes

Apparently Haiku (and its spiritual predecessor BeOS) can store arbitrary attributes and data on any file within the filesystem. Unlike Mac OS X’s resource forks, it’s not just another file which is treated specially by some software, but not others. Has an API and data structure within the filesystem’s disk structure.

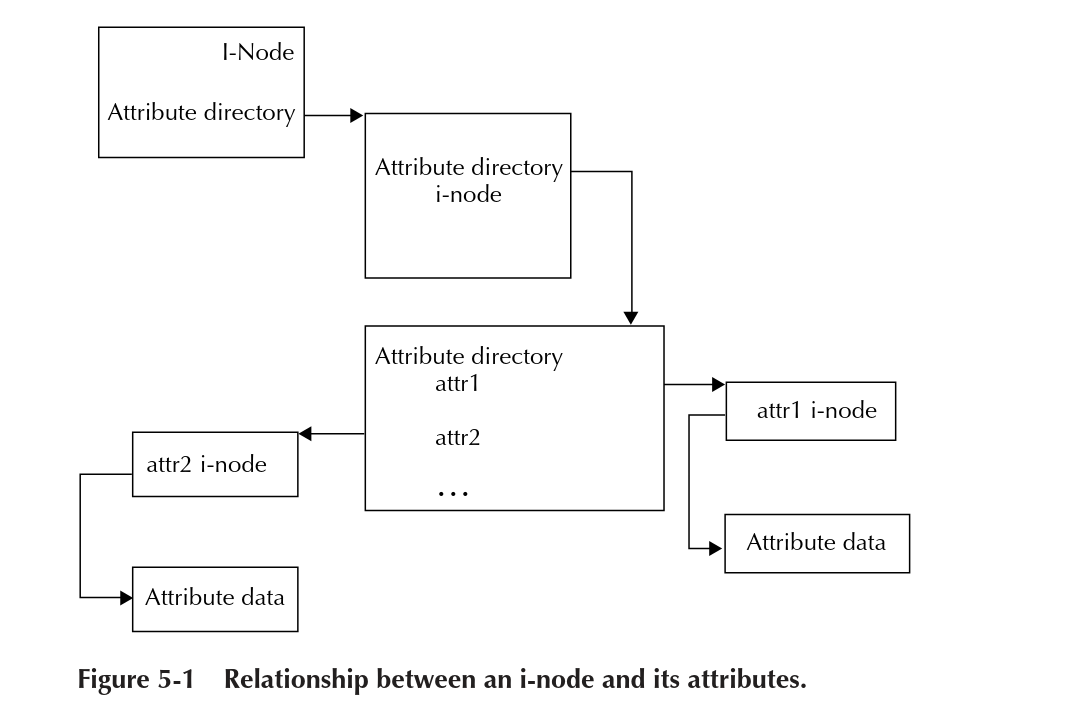

Figure 5-1 Relationship between an i-node and its attributes

Read more from this book about Haiku’s filesystem design - https://www.haiku-os.org/legacy-docs/practical-file-system-design.pdf


I spent way too much time figuring out how the API works. I know what doesn’t work. The haiku_pyapi_python310 package ships a Be.fs_attr module with hopelessly low level bindings for fs_read_attr, fs_stat_attr, and all the others. For a couple reasons, it’s not sensible over declaring one’s own foreign function interface which constructs a C procedure call without proper language bindings. (I couldn’t figure out the correct types to call into the Be.fs_attr functions, despite helpful type annotations.)

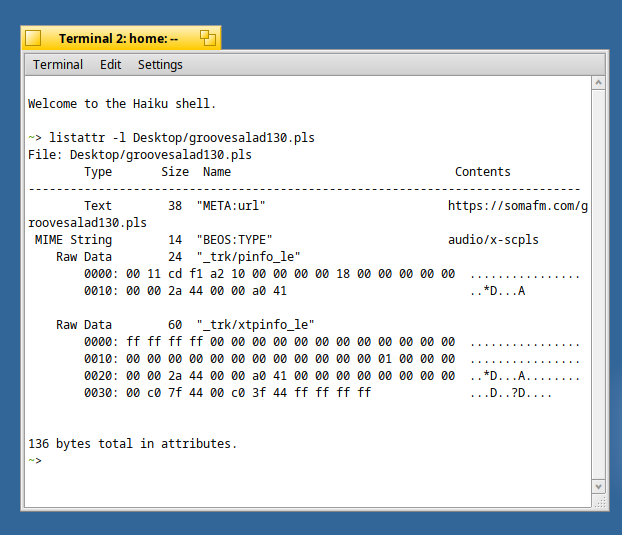

listattr -l shows a file's original download URL (via META:URL)

At least there is listattr — check it out! Some applications record the URL of downloaded files as a file attribute!. Yup, that’s what the META:URL attribute stores (see screenshot). This is not dissimilar to Mac OS’s use of its extended attributes (kMDItemWhereFroms).

Woops, I glanced into the abyss of filesystem quirks and the quirks stared back.
